Description
The OXMAN CNC Router is an industrial Grade CNC Newly designed with SFU16 (16mm) Ball Screws and Double Dual Extended HG&MGN Linear Rails Trammission on Each Axis.All key components of the entire machine are installed with precision locaing pins,and all axes are protected by sheet metal and rein-forced aluminum.
The OXMAN CNC is a self-assembly kit come with 3 Workbench Options, and the cost of different workbenches will be different,you can choose according to your budget.
We recommend OXMAN ULTRA as it comes with complete deluxe workbench.
It is 100% fully self-developed, designed by BulkMan3D International R&D Team in 2024 and copyrighted by BulkMan3D.
NOTE: This purchase link is the OXMAN complete kit/full Kit,if you plan to use your own control system, spindle system or other electronics, please click here to purchase an OXMAN mechanical kit.
This Full Kit Includes:
- 1000×1000 Or 1500x1500mm OXMAN CNC Mechanical Kit (OXMAN or OXMAN PRO or OXMAN ULTRA for choice）
- (X axis and 2Y axis=SFS1610 Ball Screw, Z axis=SFU1204 Ball Screw)
- The Mechanical Kit already includes spindle mounting bracket (default diameter is 80mm)
- New Design Cable Drag Chain System
- 1x XYZ Probe (Free Gift)
- 1x Drill Bits (Free Gift)
- Wiring Shielded Cable Kit
- +Options
- Spindle Bundle Kit with Dust Cover-80mm
- 2.2KW 110V/220V Water-Cooled Spindle Bundle (High Speed 7 Series 4 Bearings)
- 2.2KW 110V/220V Air-Cooled Spindle Bundle (High Speed 7 Series 4 Bearings)
- Spindle Bundle Kit with Dust Cover-80mm
- +Options
- Controller Bundle Kit with Stepper Motors
- DDCS4 V4.1 OFF-LINE Control Box (with 2.2N.m Closed Loop Stepper Motors)
- DDCS4 V3.1 OFF-LINE (with 2.2N.m Closed Loop Stepper Motors)
- UC300 Mach3 (with 2.2N.m Closed Loop Stepper Motors)
- Mini UC300 Mach3 4 Axis Control Box (with 2.2N.m Closed Loop Stepper Motors)
- Controller Bundle Kit with Stepper Motors
- The Ball screw nut fixing and dismounting requires professional tools or done by professional stuffs!
- Never rotate the ball screw nut over the ball screw end! This is very important as if the ball bearings come off the ball nut, the ball screw will not work properly and you will void any warranty!
Machine Capability
The OXMAN CNC excels at Cutting and 3D Carving through plastics, foam, softwood, hardwood and even soft metal such as aluminium and brass.
Compatible Material for Cutting/Milling/Engraving: Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam and so on.
By using different Drill Bits & Milling Cutters The OXMAN CNC can create intricate 3D carvings like wood artware, inlays, adverting logo, plaques, furniture, amazing art works and so much more. All the widely used applications can be achived here!
Electronics Features
CNC Controller Options
- DDCSV4.1 OFFLINE Control Box With 4pcs (57HSE2.2N) 2.2N.m Closed Loop Stepper Motors

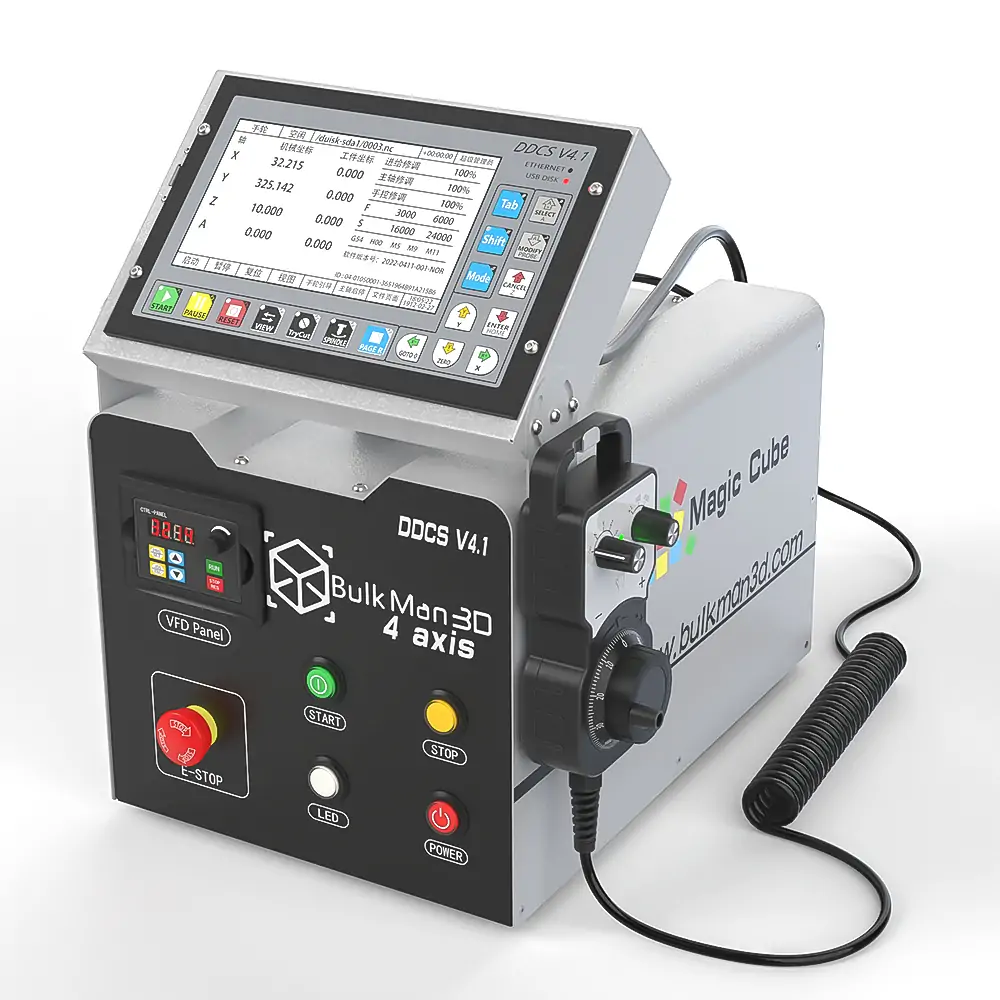

| DDCS V4.1 4 Axis Offline Control Box System with MPG Handwheel |
|
This Control Box Includes:
Hardware Configuration inside this Control Box:
Tips: Most Internal cables and modules inside this control box have been pre-connected, just follow our instruction to simply plug this box and it can work for your machine!
|
 |
| DDCS V4.1 5 Axis Offline Control Box System with MPG Handwheel |
|
This Control Box Includes:
Hardware Configuration inside this Control Box:
Tips: Most Internal cables and modules inside this control box have been pre-connected, just follow our instruction to simply plug this box and it can work for your machine!
|
 |
- DDCSV3.1 OFFLINE Controller Bundle With 4pcs (57HSE2.2N) 2.2N.m Closed Loop Stepper Motors
-
-
- DDCSV3.1 OFFLINE Controller Bundle With 4pcs (57HSE2.2N) 2.2N.m Closed Loop Stepper Motors
-
- UC300 Mach3 Controller Bundle With 4pcs (57HSE2.2N) 2.2N.m Closed Loop Stepper Motors
- Mini UC300 Mach3 4 Axis Control Box With 4pcs (57HSE2.2N) 2.2N.m Closed Loop Stepper Motors
Its rugged exterior and state-of-the-art technology ensure precise control of all CNC machine functions.
Meet the needs of various CNC machines: Engraving machines, Milling machines, Routers, Cutting…etc.
| Magic Cube Mini Mach3 4-axis CNC Control Box with MPG Handwheel |
|
Price Includes:
Hardware Configuration inside this Control Box:
Tips: Most Internal cables and modules inside this control box have been pre-connected, just follow our instruction to simply plug this box and it can work for your machine!
|
 |
-
-
- 1.5KW 220V and 2.2KW(110V/220V ) Water Cooled Spindle Bundle:
-
The 1.5KW/2.2KW Water Cooled Spindle is a heavy duty router, and due to the water cooled system, is comfortably capable of running for a long time without stopping, which makes it ideal for long, complicated jobs or applications.
The VFD Inverter in this bundle are high quality from a well respected brand; Huanyang – an industry leader in CNC machining.
It contains all the hardware for mounting a 1.5KW/2.2KW Water Cooled Spindle on a OXMAN CNC, Ultimate Bee, QueenBee Pro, WorkBee, Lead CNC Machine or other CNC machine.
-
-
- 1.5KW Spindle Size: ø80 x 208 mm (Diameter: 80mm x Length: 208mm)
- 2.2KW Spindle Size: ø 80 x 238mm (Diameter: 80mm x Length: 238mm)
- Material: The cover is made of 304 stainless steel, and the water jack is high compression casting aluminium tube, red copper coil
- Power: 1.5KW, 2.2KW
- Voltage: 1.5KW only for 220V, 2.2KW for 110V or 220V
- AC Rated Current: 8 A
- Frequency: 0-400 Hz
- Max Rotation Speed: 24000 R/min
- Water Cooled Run out: 0.01 mm
- Bearing: 7005 bearings (3pcs) , 7002 bearing (1pc)
- Coaxality: 0.025 mm (2.5 microns)
- Power interface: GX16 water proof aviation plug marked with numbers 1, 2, 3, 4
- Numbers 1, 2 and 3 are connected to the inverter power U, V, W respectively. Number 4 is connected to the Earth wire Lubrication: High temperature resistance grease lubrication.
- Collets:
- 1.5KW Water Cooled Spindle Bundle comes with ER11 Collets from 1 mm to 10 mm
- 15pcs: 1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm
- 2.2KW Water Cooled Spindle Bundle comes with ER20 Collets from 1 mm to 13 mm
- 28pcs:1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/ 12.5mm/12.7mm/13mm
- 1.5KW Spindle Size: ø80 x 208 mm (Diameter: 80mm x Length: 208mm)
-
- 2.2KW (110V/220V ) Air Cooled Spindle Bundle:
-
The 2.2KW Air Cooled Spindle Kit is a very powerful Spindle we offer, which is a must have for anyone who takes their CNC machine serious.
The VFD Inverter in this kit are high quality from a well respected brand; Huanyang – an industry leader in CNC machining.
It contains all the hardware for mounting a 2.2kW Air Cooled Spindle on a OX-MAN CNC, Ultimate Bee, QueenBee Pro, WorkBee, Lead CNC Machine or other CNC machine.
-
-
- 2.2KW Spindle Size: ø 80 x 195mm (Diameter: 80mm x Length: 195mm)
- Material: The cover is made of 304 stainless steel
- Power: 2.2 kW
- Voltage: 220V, 110V
- Frequency: 0-400 Hz
- Speed: 8000-24000 R/min
- Air Cooling
- Runout: less than 0.005 mm
- Grease Lubrication
- Power interface: GX16 water proof aviation plug marked with numbers 1, 2, 3, 4
Numbers 1, 2 and 3 are connected to the inverter power U, V, W respectively. Number 4 is connected to the Earth wire Lubrication: High temperature resistance grease lubrication - About Collets:
- 2.2KW Water Cooled Spindle Bundle comes with ER20 Collets from 1 mm to 13 mm28pcs:1mm/1.5mm/2mm/2.5mm/3mm/3.175mm/3.5mm/4mm/4.5mm/5mm/5.5mm/6mm/6.35mm/6.5mm/7mm/7.5mm/8mm/8.5mm/9mm/9.5mm/10mm/10.5mm/11mm/11.5mm/12mm/ 12.5mm/12.7mm/13mm
- 2.2KW Spindle Size: ø 80 x 195mm (Diameter: 80mm x Length: 195mm)
-
